MAXTRAC -1982-2004 CHEVY & GMC S SERIES 2WD 3" MAXTRAC LIFT SPINDLES W/ EXTENDED BRAKE LINES - 700130

MAXTRAC -1982-2004 CHEVY & GMC S SERIES 2WD 3" MAXTRAC LIFT SPINDLES W/ EXTENDED BRAKE LINES - 700130
US$518.30 FREE shipping

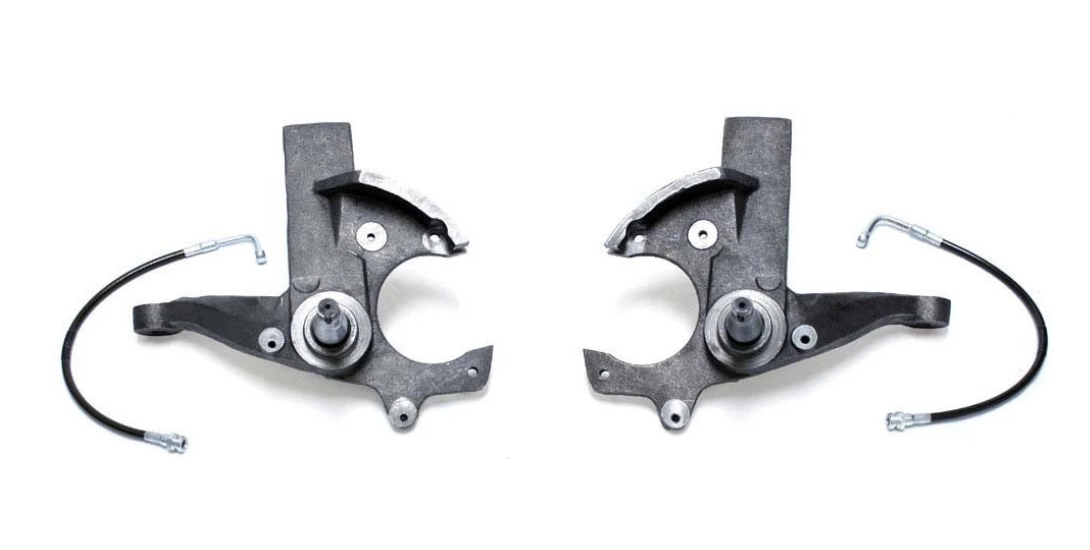

1982-2004 Chevy & GMC S Series 2wd 3" MaxTrac Lift Spindles W/ Extended Brake Lines - 700130

MaxTrac 700130 offers 3" lift spindles with extended brake lines for your 2wd 1982-2004 S-10/Sonoma, or 1982-1997 Blazer/Jimmy. MaxTrac Suspension's lifted spindles are a simple, but extremely effective way of gaining additional clearance in the front of your vehicle. By simply replacing your stock spindle, you can achieve an additional 3" 's while using stock control arms, springs, and shocks. MaxTrac's spindles are made from Ductile Iron, and are designed to be 100% bolt on, with no modifications necessary.



Wheel and Tire Fitment-





  • 15" wheel w/ 3 3/4" backspacing or less

Notes-

  • Fits 2wd Models ONLY
  • Prior to installation—measuring is required when selecting a wheel & tire combination
  • Does NOT Fit Models With Bolton Hubs
  • Only Works On Standard Bearing/Rotor Model Vehicles





Fits-

  • 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 Chevy S-10 2wd
  • 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 Chevy Blazer 2wd
  • 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 GMC Sonoma 2wd
  • 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 GMC Jimmy 2wd



MaxTrac Suspension Part # 700130
