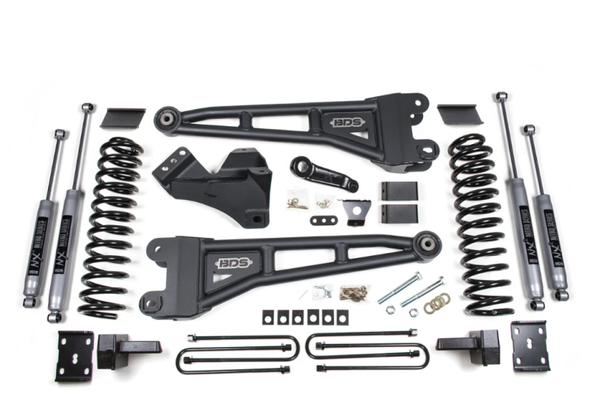

BDS - 2011-2016 FORD F250-F350 4WD 4IN. RADIUS ARM LIFT KIT - BDS1596H

BDS - 2011-2016 FORD F250-F350 4WD 4IN. RADIUS ARM LIFT KIT - BDS1596H
US$1,592.85 FREE shipping

BDS1596H will improve the ride on your 2011-2016 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs heavy-duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block u-bolt flip kit for max ground clearance brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation.

Pro-Ride Coil Springs
A pair of full-length diesel-specific Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features-



  • Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
  • Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
  • Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
  • Multi-leaf progressive design for smooth ride
  • Anti-friction pads provide a smooth and quiet ride



Details-



  • Front Lift Height: 4 IN
  • Front Lift Method: Coil Springs
  • Installation Difficulty: moderate
  • Installation Time: 8 Hrs
  • Installation Tools: drill-puller pitmanArm
  • Rear Lift Height: 4 IN
  • Rear Lift Method: Block
  • Rear Lift Option: 4 Inch Block Kit
  • Shocks Included: Yes



Notes-



  • Removal of factory block required. Net rear lift height will vary depending on the height of the factory block but will result in a level stance.
  • If equipped with a 2-piece driveshaft a driveshaft alignment kit may be required.
  • Although extremely rare front and/or rear driveline vibration may occur.
  • If equipped with a rear sway bar #123009 is required.
  • U-bolts will not work on dually.
