BDS - 17-19 F250-F350 2.5IN RAD ARM LIFT -DIESEL ENGINE - BDS1543FS

BDS - 17-19 F250-F350 2.5IN RAD ARM LIFT -DIESEL ENGINE - BDS1543FS
US$2,385.60 FREE shipping

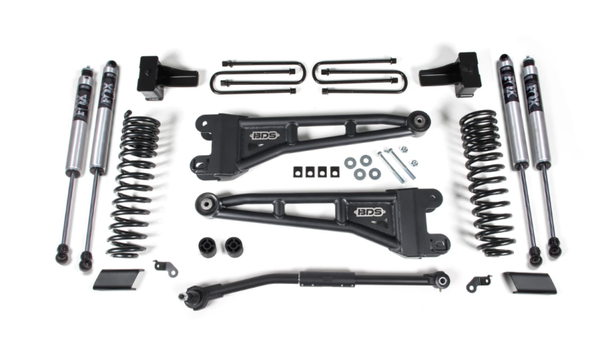

BDS1543FS will improve the ride and level out your Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs heavy duty replacement radius arms high strength 1-3/8 inch solid steel track bar for steering correction sway bar relocation brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation.

Pro-Ride Coil Springs
A pair of full-length diesel-specific Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains.

HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8"" solid steel stock the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features-



  • Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
  • Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
  • Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
  • Multi-leaf progressive design for smooth ride
  • Anti-friction pads provide a smooth and quiet ride



Details-



  • Front Lift Height: 2_5 IN
  • Front Lift Method: Coil Spring
  • Installation Difficulty: moderate
  • Installation Time: 5 Hrs
  • Installation Tools: 30mm socket-puller pitmanArm
  • Rear Lift Height: 2 IN
  • Rear Lift Method: Block
  • Shocks Included: Yes



Notes-



  • Coil springs are designed for diesel trucks. Will work on gas trucks and will net roughly 3" of front lift.
  • Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
  • Factory track bar mounting bolt requires 405 ft-lbs of torque plan ahead on how to achieve this torque spec.
